Photographs Of Newcastle: Swing Bridge

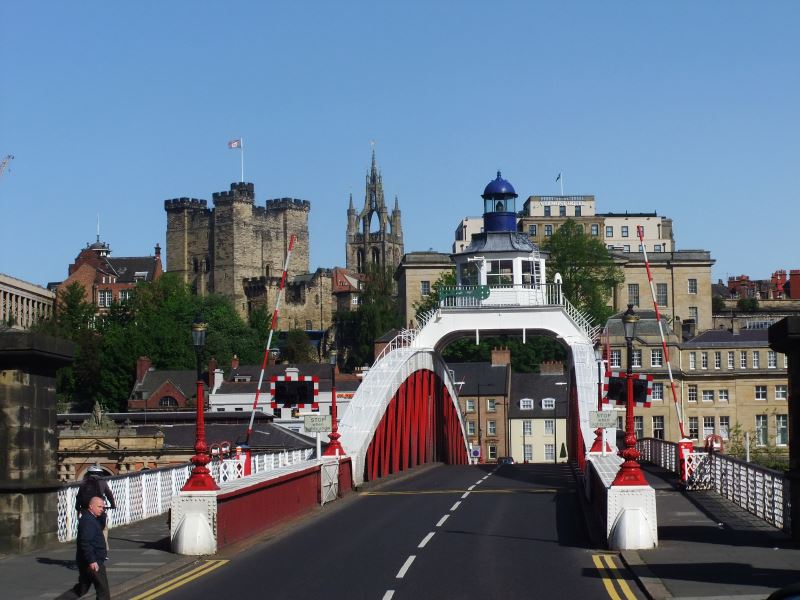

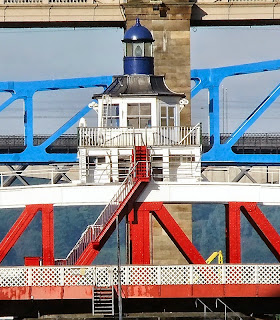

The Swing Bridge is a swing bridge over the River Tyne, England, connecting Newcastle upon Tyne and Gateshead, and lying between the Tyne Bridge and the High Level Bridge. It is a Grade II* listed structure.

The Swing Bridge stands on the site of the Old Tyne Bridges of 1270 and 1781, and probably of the Roman Pons Aelius.

The previous bridge on the site was demolished in 1868 to enable larger ships to move upstream to William Armstrong's works. The hydraulic Swing Bridge was designed and paid for by Armstrong, with work beginning in 1873. It was first used for road traffic on 15 June 1876 and opened for river traffic on 17 July 1876. At the time of construction it was the largest swing bridge ever built. The construction cost was £240,000.

The hydraulic power still used to move the bridge is today derived from electrically driven pumps. These feed a hydraulic accumulator sunk into a 60 ft (18 m) shaft below the bridge; the water is then released under pressure which runs the machinery to turn the bridge. The mechanism used for this is still the same machinery originally installed by Armstrong.

It has an 281 ft (85.6 m) cantilevered span with a central axis of rotation able to move through 360° to allow vessels to pass on either side of it.

The busiest year of operation was 1924 when the bridge was rotated 6,000 times unlike current use where it is only required to turn occasionally to allow yachts and pleasure craft to pass by and on the first Wednesday of each month as a maintenance exercise.

The Bridge featured in the final episode and climax of the educational series Geordie Racer from Look and Read when the villains became stranded on the bridge after a robbery.

The bridge was renovated in 2018 at a cost of £200,000. The restoration involved 25,000 hours of work and 10,000 screws were used in repairs.

Description courtesy of Wikipedia.

20th December 2023

30th May 2023

13th July 2022

23rd March 2022

Swing Bridge Pillars.

On both the Newcastle side and Gateshead side of the bridge, there are four large stone pillars adjacent to its footpaths. They are all the same apart from one on the Gateshead side, which has been cut in half from top to bottom as it used to butt up to a building which has since been demolished.

North East Pillars.

North West Pillars.

South East Pillars.

South West Pillars.

12th August 2021

21st September 2020

3rd August 2020

16th June 2020

22nd June 2019

16th December 2018

29th June 2018

30th May 2018

26th September 2017

18th July 2017

24th May 2016

11th June 2015

10th June 2015

10th April 2015

3rd December 2014

6th August 2014

1st July 2014

26th May 2014

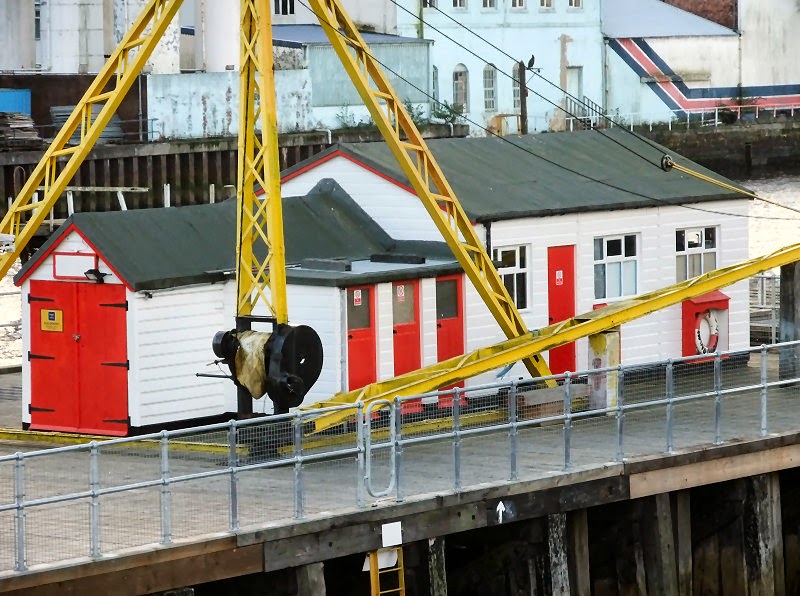

27th November 2013

21st October 2012

16th January 2012

9th January 2012

28th September 2011

30th September 2010

10th September 2009

23rd June 2009

13th October 2008

26th September 2008

13th September 2008

12th September 2008

The engine room.

4th June 2008

7th March 2008

11th February 2008

10th October 2007

A short video showing the bridge in action.
